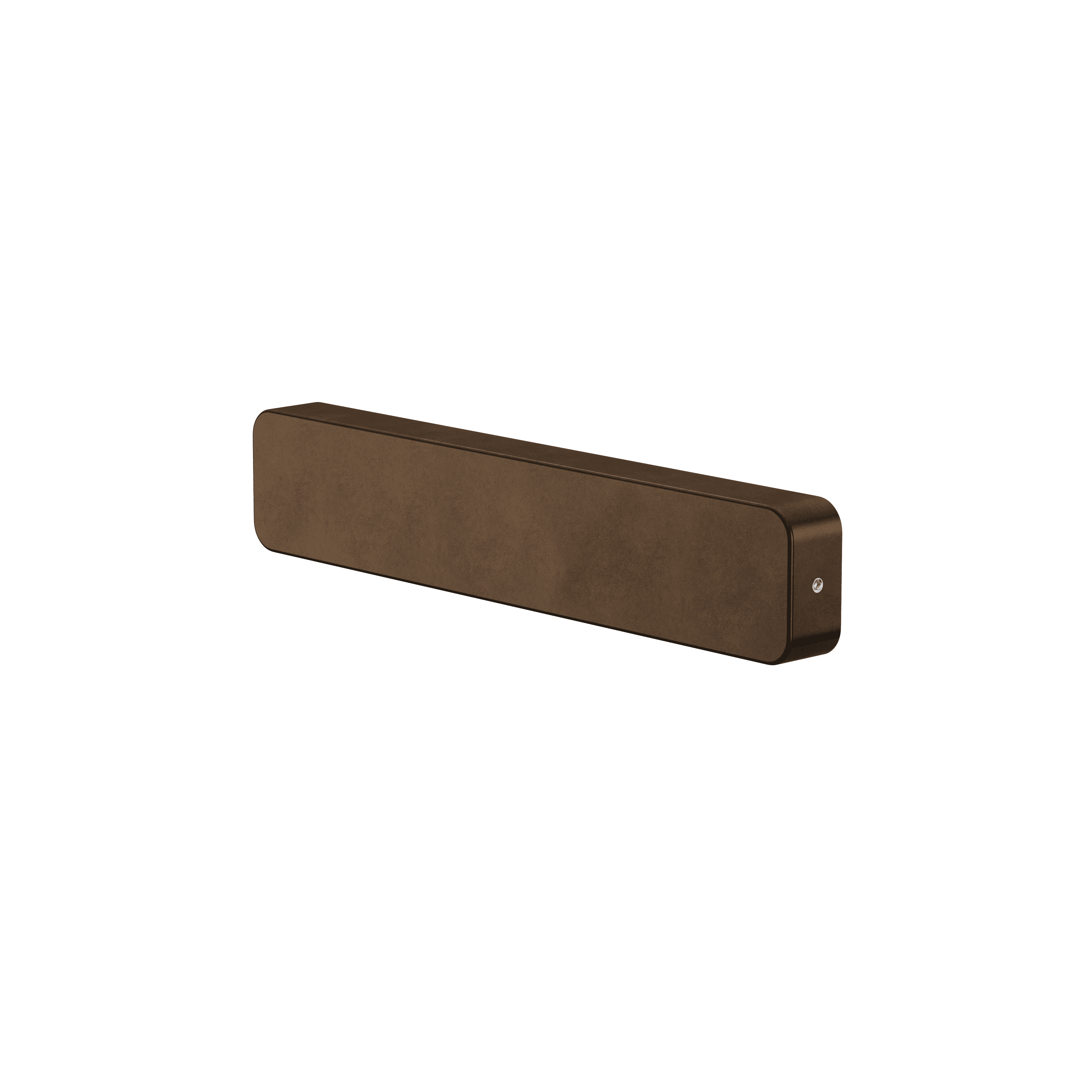

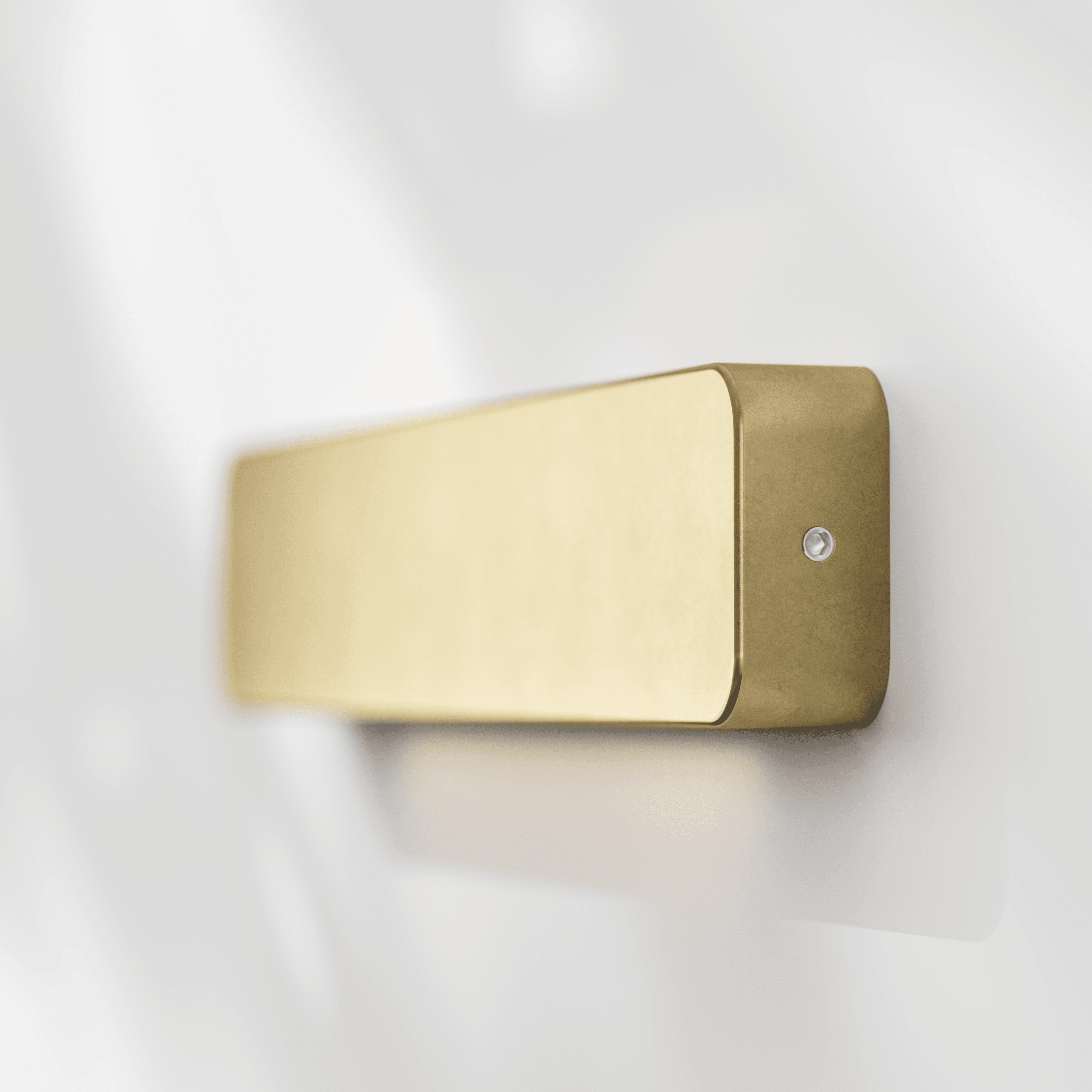

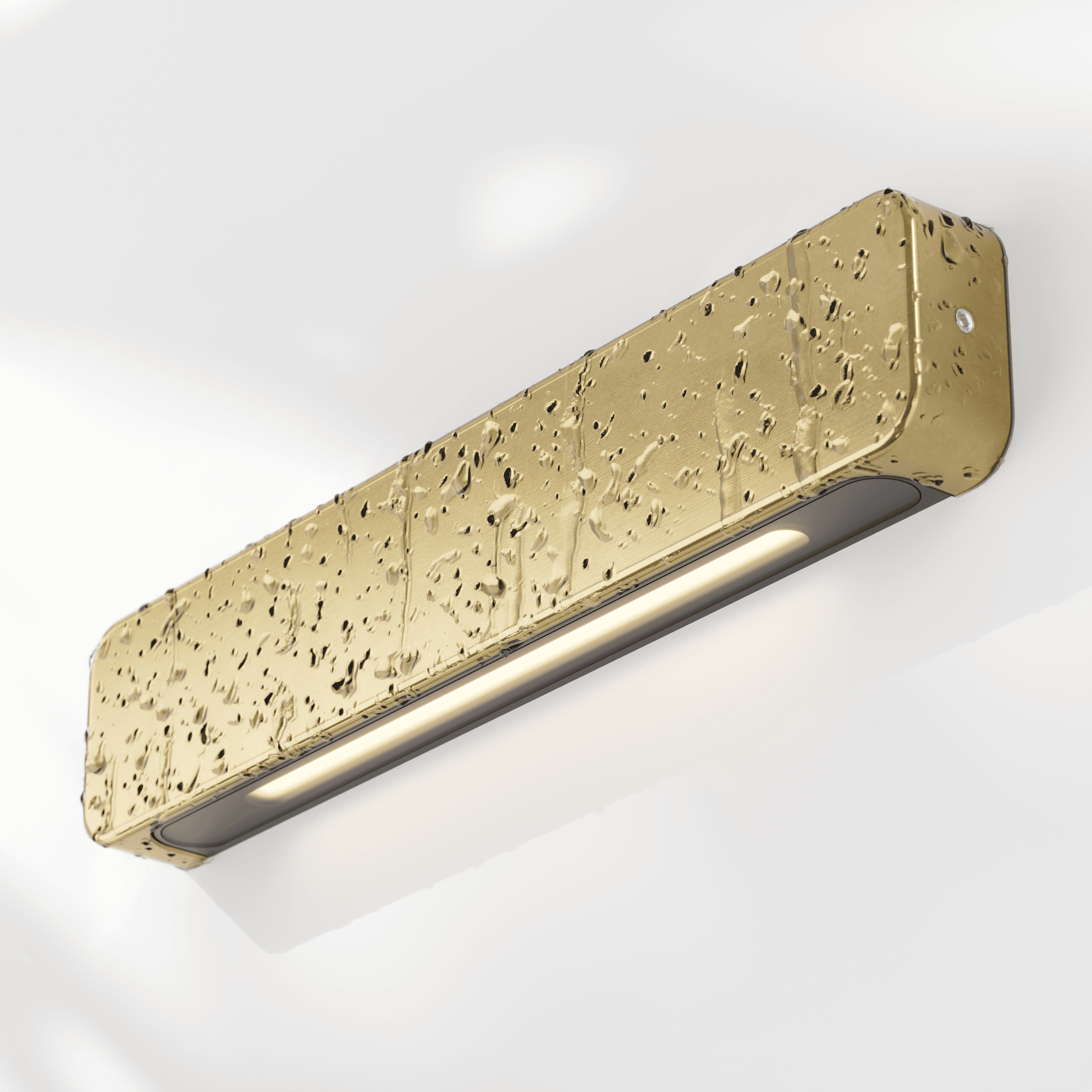

PIA SLIM
Grazing Light
ARX-517Gallery
Introduction
PIA SLIM is a low profile linear grazing light suitable for stair risers and other way finding applications. With an innovative bracket that houses the light source, PIA SLIM is easy to install low to the ground. Integrated 24V PWM 2-wire light sources are achieved via the development of custom COB modules, all feature 90+ CRI and chemically etched glass for perfectly diffuse light output.
Specifications
- Product code
- ARX-517
- Name
- PIA SLIM
- Type
- Surface mount grazing light
- Construction
- Machined brass
- Overall dimensions
- 180mm (W) x 35mm (H) x 16mm (D)
- Light source
- Custom COB
- Input voltage
- 24VDC (Remote driver)
- Power
- 2W
- Output
- 131lm
- Optical
- Diffuse
- Dimming
- Yes, 2-wire PWM
- CCT
- 27K / 30K / 40K
- CRI / TM-30
- 90+
- Warranty
- 10 Year Limited
- Weight
- 310 grams
- IP Rating
- IP65
